Technical Deep-Dive: Power and Electrical Specifications

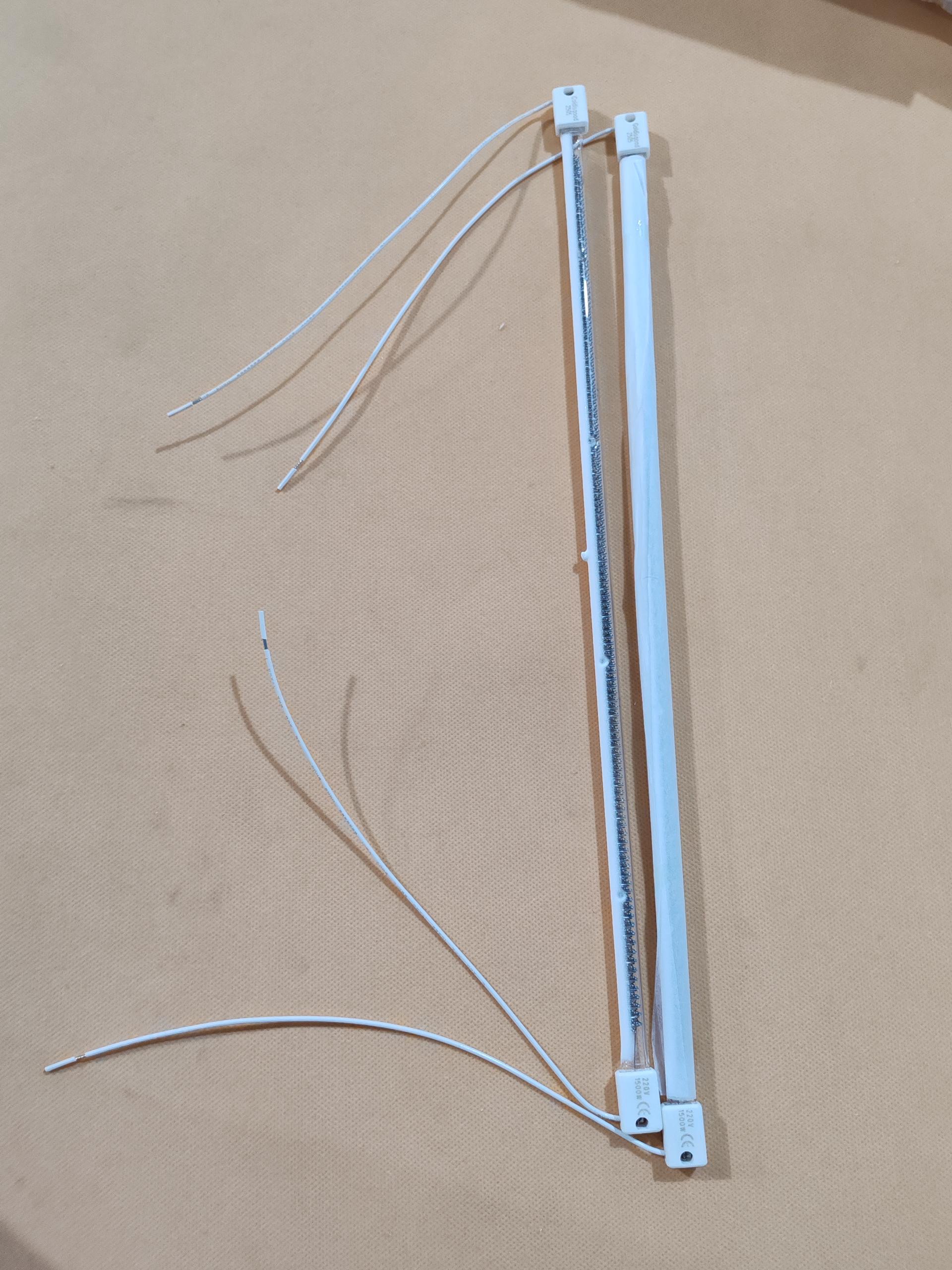

Let’s talk about the power behind the heat. We built this 1200W halogen lamp for industrial machines that crave serious heat in a small space. That 1200W punch gives you a rapid temperature rise, which means you can shave precious seconds off your cycle times—think plastic forming, for example. It runs on high-voltage, usually 230V or 400V, which keeps the current manageable. The payoff? You can use smaller wiring inside your machine. The tube length is tailored to the heater zone, so you get even coverage without the lamp sticking out where it doesn’t belong. A typical length of 300–400mm hits that sweet spot.
Material and Design: Halogen, Quartz, and Connectors
Inside, you’ve got a quartz envelope filled with halogen gas. That’s the secret to keeping the light output steady over time. It works by redepositing evaporated filament material back onto the filament, so the lamp doesn’t dim as it ages. The filament runs hotter than a standard incandescent, which pushes energy into the shortwave and near-infrared spectrum. That translates to heat that penetrates fast. Many versions add a reflective coating on the quartz to focus more energy forward, boosting usable watt density right where you need it. And for the connections, we went with an R7s base—double-ended, linear contact that handles the high current. It makes replacement a straightforward, drop-in job in your existing fixtures.
Application and Benefits: Where This Configuration Wins
This lamp shines when you need fast, focused heat in a tight zone—like heating PET preforms, thermoforming, or drying components. The watt density is high, so the heat comes on quick. Just know: with that kind of intensity, your machine needs to manage the heat. You’ll feel more ambient warmth around the lamp, so plan for ventilation and shielding. On the service side, the R7s base keeps wiring simple, and the halogen cycle keeps output consistent, so your process stays repeatable. It’s a clear trade-off. You get intense heat in a compact form, but you have to build in cooling and keep your safety clearances in mind. **Power:**1200W **Voltage:**230V/400V (depends on how you set it up) **Base:**R7s **Envelope:**Halogen-filled quartz **Spectrum:**Shortwave/near-infrared
